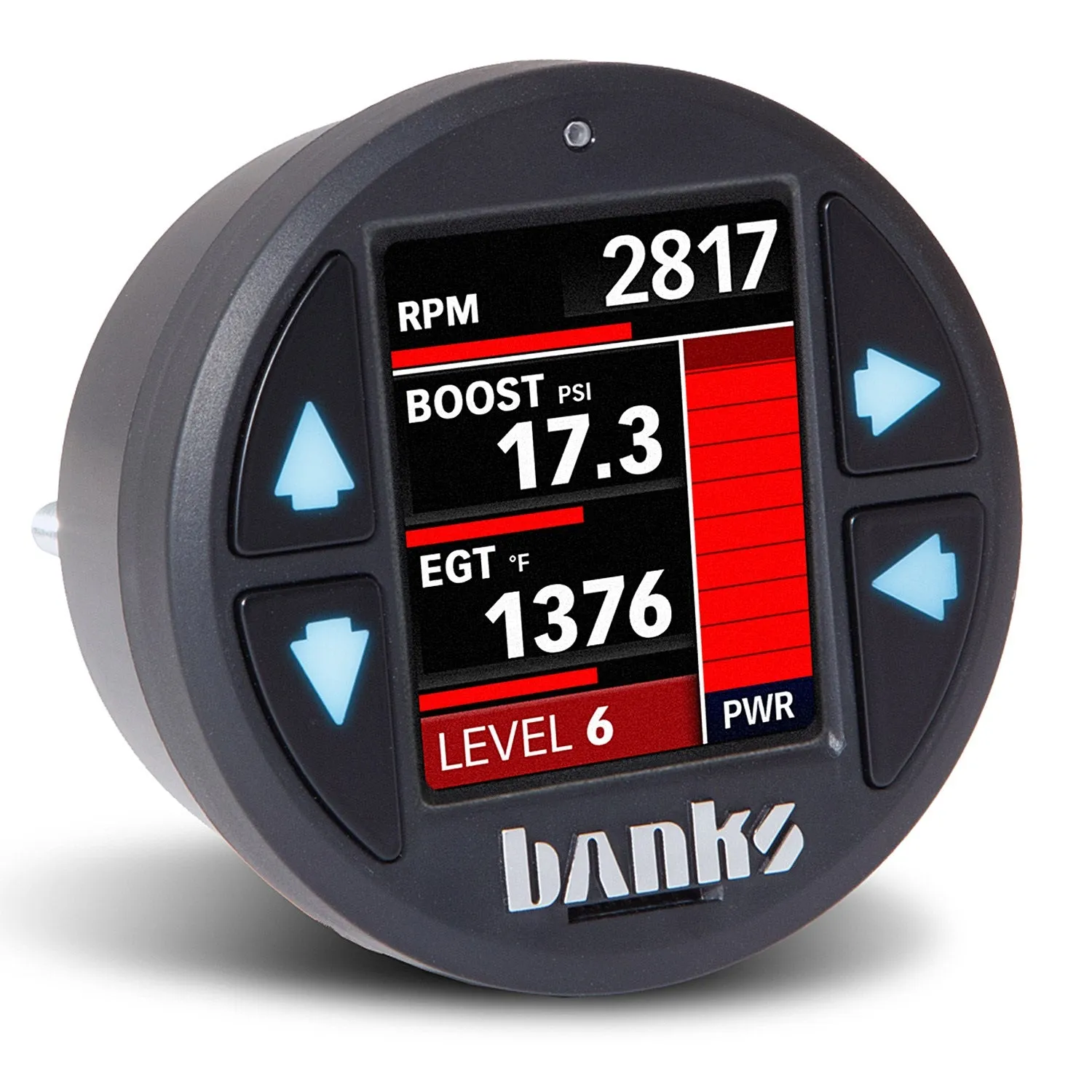

Banks iDash is the smallest, most powerful plug-n-play OBD-II monitor and control interface on the market. With its easy to read 2- to 8-gauge user-selectable LCD display, the iDash reads a multitude of engine parameters and internal data directly from the vehicles ECM via OBD-II. It also opens a whole new world of Banks exclusive calculated parameters not available on any other device. Set custom low and high alerts for any engine parameter. Monitor max and min values for a user-selectable list of parameters. Read and clear trouble codes on-the-fly. Customize the navigation button and LCD display colors, brightness, and even the rate at which they dim at night. Daisy chain 4 iDash gauges and view up to 32 parameters simultaneously. Add Banks sensor modules such as the 4-channel analog module, 4-channel thermocouple module, and AirMouse Ambient Air Density Module for nearly infinite vehicle and weather analysis. Expand functionality with Banks Modules (Pressure/Temp Sensors, and more).

Resources

Specifications:

Description_DES	iDash Super Gauge
Description_EXT	iDash 1.8 System; Universal CAN; for use with Banks Bus Modules
Description_FAB	300 Parameters Available
Description_FAB	Built In Shift And RPM Light

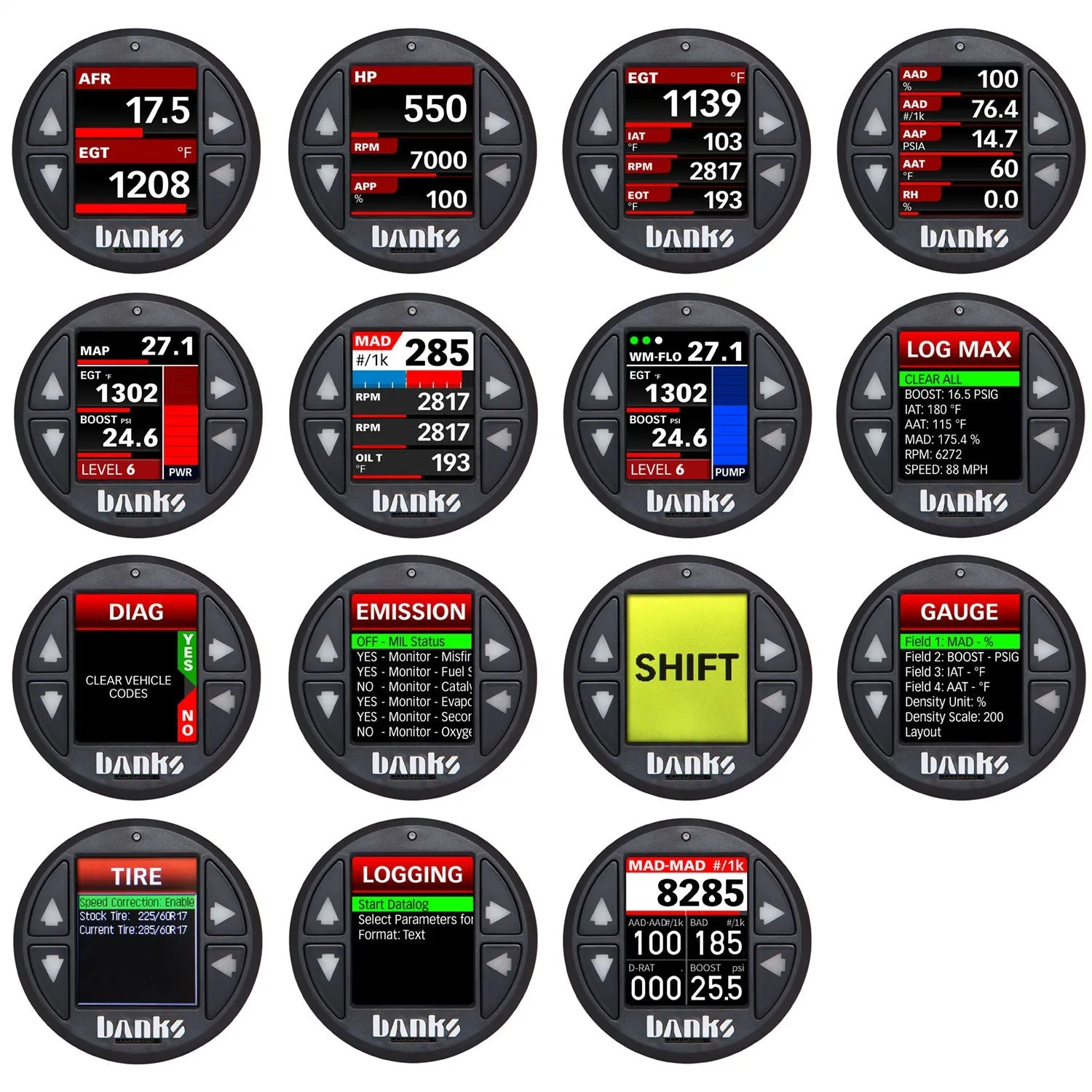

Description_FAB	Customizable Gauge Display
Description_FAB	Log Up To 20 Min/Max Values
Description_FAB	Upgrade Derringer Tuner With 6 Power Levels
Description_LAB	Proposition 65
Description_MKT	Banks iDash is the smallest, most powerful plug-n-play OBD-II monitor and control interface on the market. With its easy to read 2- to 8-gauge user-selectable LCD display, the iDash reads a multitude of engine parameters and internal data directly from the vehicles ECM via OBD-II. It also opens a whole new world of Banks exclusive calculated parameters not available on any other device. Set custom low and high alerts for any engine parameter. Monitor max and min values for a user-selectable list of parameters. Read and clear trouble codes on-the-fly. Customize the navigation button and LCD display colors, brightness, and even the rate at which they dim at night. Daisy chain 4 iDash gauges and view up to 32 parameters simultaneously. Add Banks sensor modules such as the 4-channel analog module, 4-channel thermocouple module, and AirMouse Ambient Air Density Module for nearly infinite vehicle and weather analysis. Expand functionality with Banks Modules (Pressure/Temp Sensors, and more).
Description_SHO	Gauges/Mounting
height	4.0
length	11.25
LTL	N
weight	4.0
width	8.75
